Product details

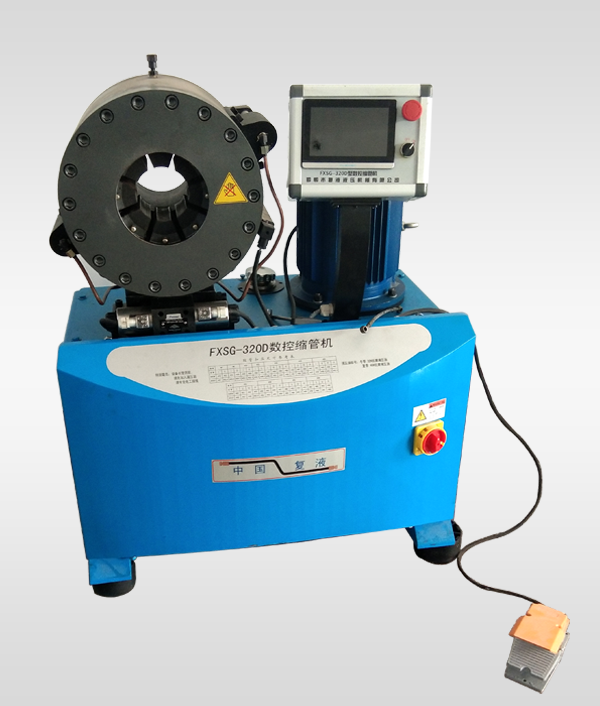

Product model:FXSG-320D（Numerical control）
Product features:The appearance design is more user-friendly, and the operation is more convenient and comfortable.
Technical Parameter
|
Crimping range (mm/inch) |
6mm-76mm /?-3inch |
|
hose ID (mm/inch) |
76mm/3inch |
|
Crimping force ( ton ) |
860T |
|
Full crimping circle (seconds) |
12s |
|
Opening and closing |
±35mm |
|
opening (no dies) |
165mm |
|
Accuracy |
<0.1mm |
|
Motor |
5.5kw |
|
Voltage |
380V 50HZ |
|
Systematic pressure |
31.5MPa |
|
Displacement of oil pump |
36L/min |
|
Dies for the machine ( hange ) |
12sets |
|
Weight |
600kg |
|
Volume |
920x720x1170mm |
